The Machine Has Been Tested, After-Sales Service And Warranty Are Provided.

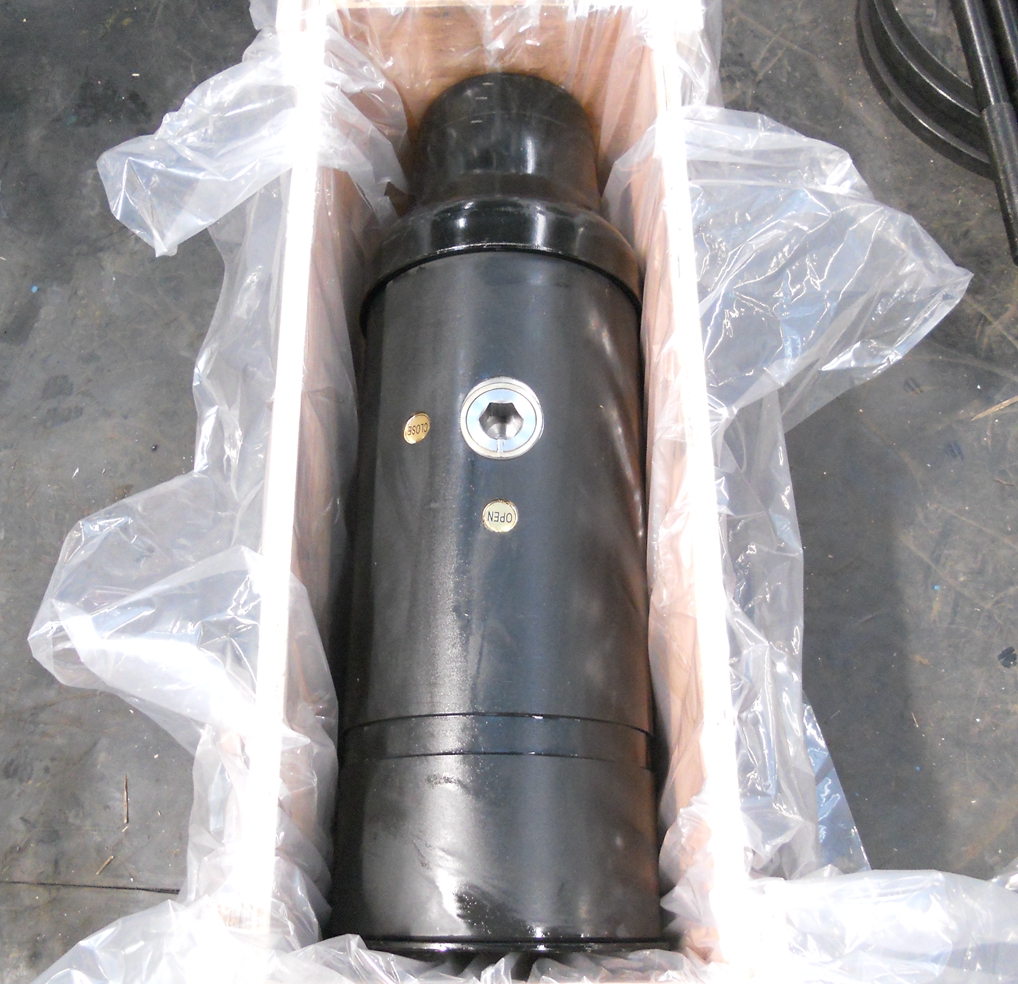

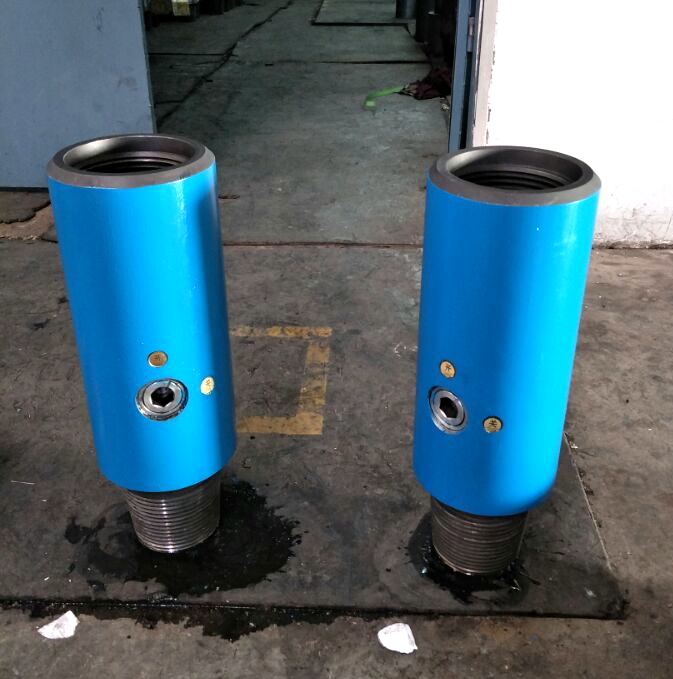

IBOP for top drive can be divided into Upper IBOP and Lower IBOP; they are control valves which are used with the top drive system. Usually the two valves connected to the top drive drilling device. The IBOP adopts high reliable metal seal. So it can bear high pressure upward and downward. The working pressure can be achieved 10000 psi or 15000 psi. When well kick occurring, the upper IBOP can be closed by remote controlled, but the lower IBOP will be closed manually. Actuator for top drive is a subsidiary body which controls open and close of Upper IBOP. It works with other accessories of the rig, so that control opening and closing of Upper IBOP on any height of derrick driller console. Both the valve body cavity and accessories have special anticorrosive processing, so that prolong the working life.
Top Drive Saver Sub is a kind of sub connected with Lower IBOP and drill pipe, mainly used in the top drive system. Not only acting as crossover sub, but also protecting lower IBOP. Top drive saver sub can be divided into general top drive saver sub and low temperature top drive saver sub.
Actuator is a driving tool supporting the use of top drive system, and it consists of actuator and crank. It drives the actuator by the top drive hydraulic system, and the actuator controls open and close of the inner ball valve in Upper IBOPs by rotating of crank mechanism. It is reliable to work and easy to handle.
Top drive floating cushion sub an important tool in drilling operation. It is suit to the drilling process in oil, gas and geological exploration. Mainly used for top drive drilling operation. It can increase the working life of bearing and gear in top drive rotary box.

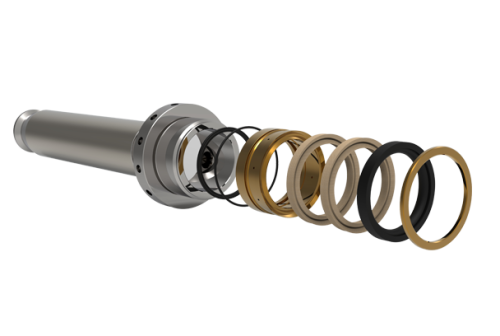

Downhole seal stacks are generally a combination of metal, non-elastomeric seal (Thermoplastics) and elastomeric seal (Rubber). Most common designs are combination of V-ring(Chevron seal), O-ring, thermoplastic or metal as back-up or spacer ring. In some special cases, the entire seal stacks are made of thermoplastic and metal. Most thermoplastic used in oil field are virtually […]
Fluid End Module STRAIGHT –TYPE I-Shaped ONE-PIECE Fluid End Module—5000PSI/7500PSI Options L-SHAPED TWO-PIECES Fluid End Module. Fluid End Module Interchangeability SCOTON has been an integrated engineering & manufacturing specialist recognized worldwide for its unique world Leading HIGH PRESSURE Technology, as well as HIGH PRESSURE FORGING, WORLD TOP CLASS HEAT TREATMENT & PRECISE MACHINING Technology and […]
High quality redress kits available for maintenance of CANRIG and NOV top drive. The redress kits are being used in offshore top drive maintenance activities.
BOP spare parts & redress kits Wireline Adapter Kits Swivel Joint Repair Kits Plug Valve spare parts & repair kits
