Mud Pump & Fracturing Pump Spare Parts

Fluid End Module

STRAIGHT –TYPE I-Shaped ONE-PIECE Fluid End Module—5000PSI/7500PSI Options L-SHAPED TWO-PIECES Fluid End Module.

Fluid End Module Interchangeability

SCOTON has been an integrated engineering & manufacturing specialist recognized worldwide for its unique world Leading HIGH PRESSURE Technology, as well as HIGH PRESSURE FORGING, WORLD TOP CLASS HEAT TREATMENT & PRECISE MACHINING Technology and high quality products in the O&G industry, by designing and fabricating HNA L-SHAPED TWO-PIECES/STRAIGHT-TYPE I-Shaped ONE-PIECE—5000PSI/7500PSI OPTIONS Fluid End Modules for Duplex, Triplex and Quintuplex pumps, which are 100% interchangeable to most of the global famous brands, Bomco, Honghua, TSC, Weatherford, Ellis Williams, Gardner Denver, Emsco, National, Oilwell, Ideco, Drillmec & other major types if models, and customized design and production available.

• BOMCO: F-500, F-800, F-1000, F-1300, F-1600, F-1600HL, F-2200HL
• BREWSTER: B-1000-T, B-1100-T, B-1300-T, B-1600-T
• HONGHUA: HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL, 3NB-1300, 3NB-1600, 3NB-1600HL
• EMSCO: F-350, F-500, F-650, F-800, F-1000, FA-1300, FA-1600, FB-1300, FB-1600, FC-1600, FC-2200, FD-1000, FD-1600, D-175, D-225, D-375, D-500, D-550, D-700, D-1000, D-1000-A, D-1350, D-1650, DA-500, DA-700, DA-850, DB-500, DB-700, DB-850, DB-1000,DC-700,DC-850,DC-1000
• NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, JWS-165-L, JWS-340, JWS-400, C-250, C-350, K-380, K-500-A, K-700, G-700, N-1000, N-1300, N-1600
• OILWELL: A-350-PT, A-650-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT, HD-1400-PT, HD-1700-PT, 212-P, 214-P, 218-P, 612-P, 700-P, 816-P, 1000-P
• IDECO: T-500, T-800, T-1000, T-1300, T-1600, MM-450, MM-500-F, MM-600-A, MM-700-F, MM-1000
• GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PAH-275, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP, TGE, TGF, TGH
• LS NATIONAL: 3NB-500C, 3NB-1000C, 3NB-1300C, 3NB-1600
• WIRTH: TPK-1000, TPK-1600, TPK-2000
• RUSSIAN BRANDS: UNBT-650, UNBT-950, UNBT-1180, UNBT-1180L, UNB-600, NBT-600, 8T-650
• WEATHERFORD: MP-5, MP-8, MP-10, MP-13, MP-16
• ELLIS WILLIAMS: E-447, E-2200, W-440, W-446
• DRILLMEC: 7T-600, 8T-800,9T-1000,10T-1300, 12T-1600, 14T-2200, 10D2C, 8D1S
• UPETROM: 3PN-1000, 3PN-1300, 3PN-1600, 3PN-2000
• OPI: 350-D, 350-GD, 500-DC, 700-HDL, 1000-HDL
• LEWCO CAMERON: WH440, WH600, WH770, WH1000, WH1312, WH1612, WH2012, WH2214, W446, W600, W1100, W1712, W2214, W2215, W3000
• AMERICAN BLOCK: K-800, K1000, K-1300, K-1600, K-2200
• BREWSTER: B-1000-T, B-1100-T, B-1300-T, B-1600-T
• LOADMASTER: LSF-500, LSF-800, LSF-1000, LSF-1300, LSF-1600
• SOILMEC: 7T500, 7T508, 8T650

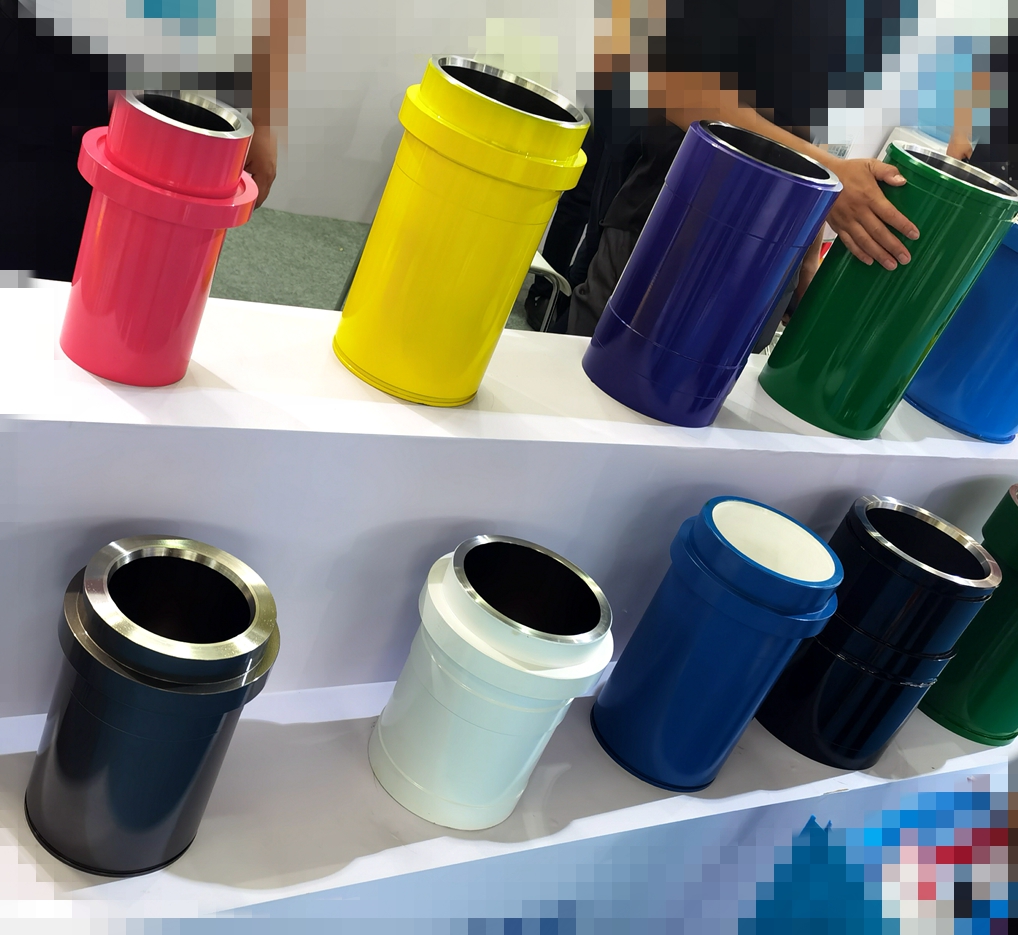

Liner

Aduanced zirconia liner

Hy-Chrome Bimetallic Liner

Advanced Compound Alloy Bimetallic Liner

Chrome Plated/ High Frequency Surface Treatment Metal Liner

Piston Assembly

Assembled Piston with Replaceable NBR / Polyurethane – OBM Resistant

Assembled / Bonded Piston with HNBR – OBM High Temperature / High Pressure resistant

Bonded Piston with Polyurethane – Flex Lip R

Bonded Piston-Dual Duro Polyurethane-High pressure & OBM Resistant (Flex Lip Dual Green)

Bonded Piston-Dual Duro Polyurethane-High Temperature high pressure & OBM Resistant (Flex Lip Dual Blue)

Bonded Piston-Dual Duro Polyurethane-Extreme High Temperature high pressure OBM & corrosion Resistant (Flex Lip Dual White)

Slip Seal Bonded Piston with Dual Duro Polyurethane-Extremely high pressure OBM resistant (Slip Seal Dual Red)

Slip Seal Bonded Piston with Multi-Duro Polyurethane-Extremely high pressure high temperature OBM resistant (Slip Seal Dual Blue)

Slip Seal Bonded Piston with Multi-Duro Polyurethane-Extremely high pressure Extremely high temperature corrosion OBM resistant (Slip Seal Dual White)

Double Acting Assembled Piston with NBR/HNBR Rubber/Polyurethane-DA

Double Acting Bonded Piston with Polyurethane-DA Flex Lip R

SCOTON Piston Interchangeability

SCOTON has been an integrated engineering & manufacturing specialist recognized worldwide for its unique World Leading DUAL/MuIti DURO POLYURETHANE, HIGH PRESSURE Technology as well as HIGH PRESSURE FORGING, CASTING, WORLD TOP CLASS HEAT TREATMENT & PRECISE MACHINING Technology and high quality products in the O&G industry, by designing and fabricating Assembled/ Flex Lip Bonded / Slip Seal Bonded/ Double Acting Assembled/ Double Acting Bonded Pistons with NBR/HNBR/Polyurethane Inserts and Piston Assembly Parts for Duplex, Triplex and Quintuplex pumps, which are 100% interchangeable to most of the global famous brands. Bomco, Honghua, TSC, Weatherford. Elis Wiliams, Gardner Denver, Emsco, National, Oilwell, Ideco, Drilmec & other major types of models, and customized design and production available

Valve & Seat & Insert & Spring

One-Piece Forged Full Open Valve Body

Welded Full Open Valve Body

Central Stem Guide Valve Body

Rotary Type Full Open Valve Body

Gravel Type Full Open Valve Body Valve Spring

Valve & Seat & Insert & Spring Interchangeability

SCOTON has been an integrated engineering & manufacturing specialist recognized worldwide for its unique WORLD LEADING USA IMPORTED POLYURETHANE, HIGH PRESSURE Technology, as well as HIGH PRESSURE FORGING, INVESTMENT CASTING, WORLD TOP CLASS HEAT TREATMENT, PRECISE MACHINING Technology and high quality products in the O&G industry, by designing and fabricating Valves & Seats & Inserts & Springs for Duplex, Triplex and Quintuplex pumps, which are 100% interchangeable to most of the global famous brands, Bomco, Honghua, TSC, Weatherford, Ellis Wiliams, Gardner Denver, Emsco, National, Oilwell, Ideco, Drillmec & other major types of models, and customized design and production available.

Fluid End Expendables & Parts

Rod & Clamp – Piston Rod & Sub, Pony Rod, Extension Rod, Rod Clamp

Threaded Ring, Valve Guide, Wear Plate, Cylinder Head & Plug, Valve Cover & Lock Cap, Liner Cage, Liner Bushing, Liner Clamp, Liner Adapter, Alignment Ring, Discharge Connector, Discharge Adapter, Wedge Assembly, Stuffing box, Baffle, Retainer, Flange, Bushing, Lock Washer, Gasket & Seal & O-Ring, Bolt ü Stud & Nut & Screw, etc.

Power End Parts

Crosshead Assembly

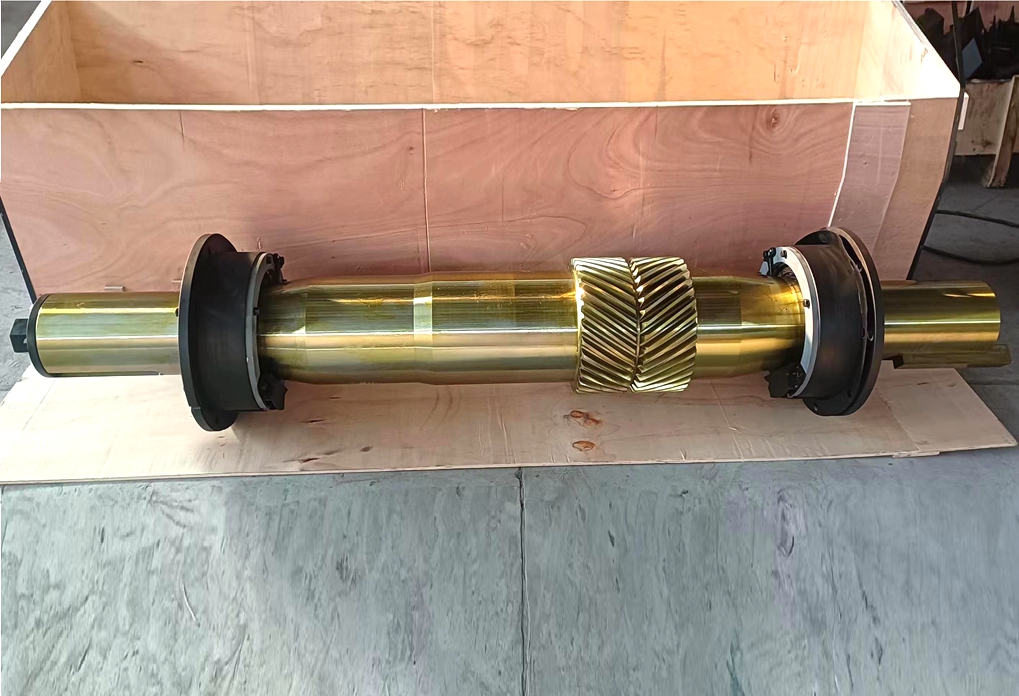

Pinion Shaft

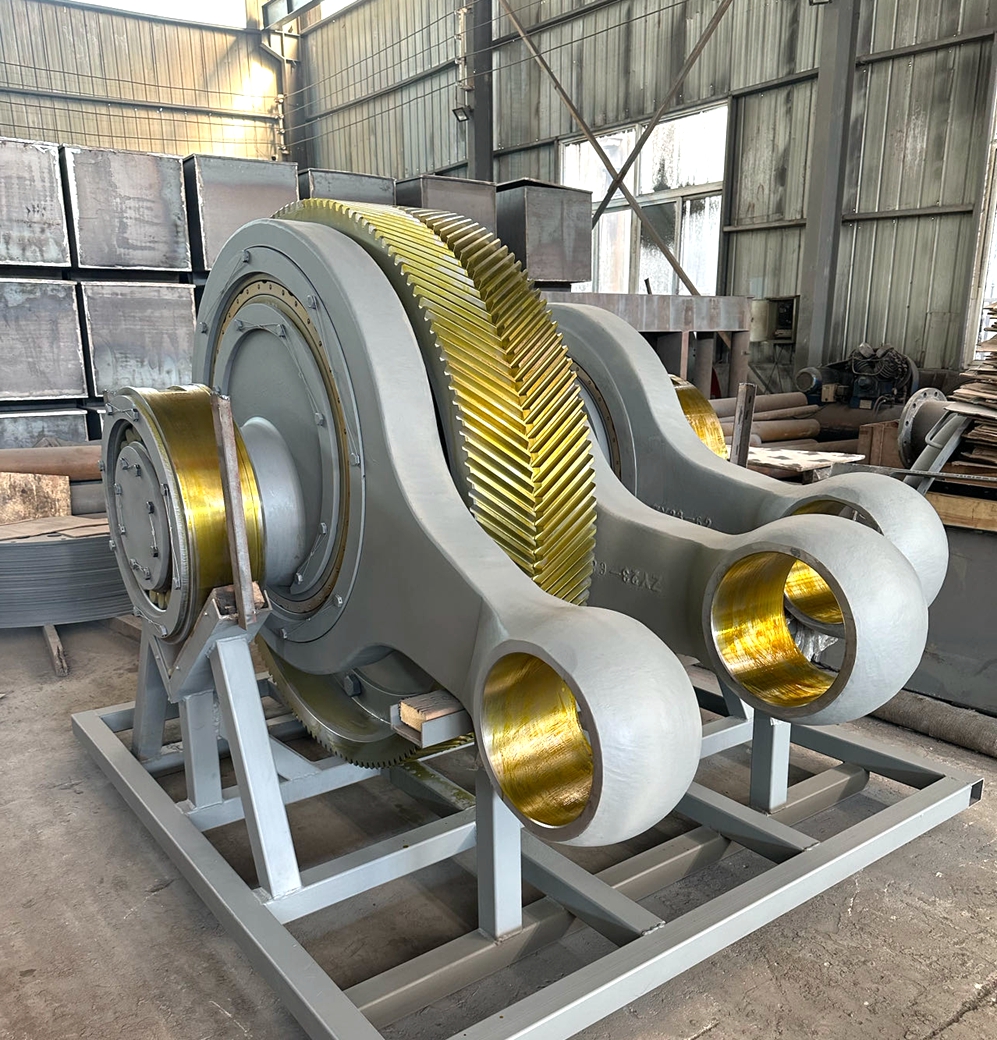

Bull Gear

Crank Shaft

Connecting Rod

Bearing & Bearing Assembly Parts

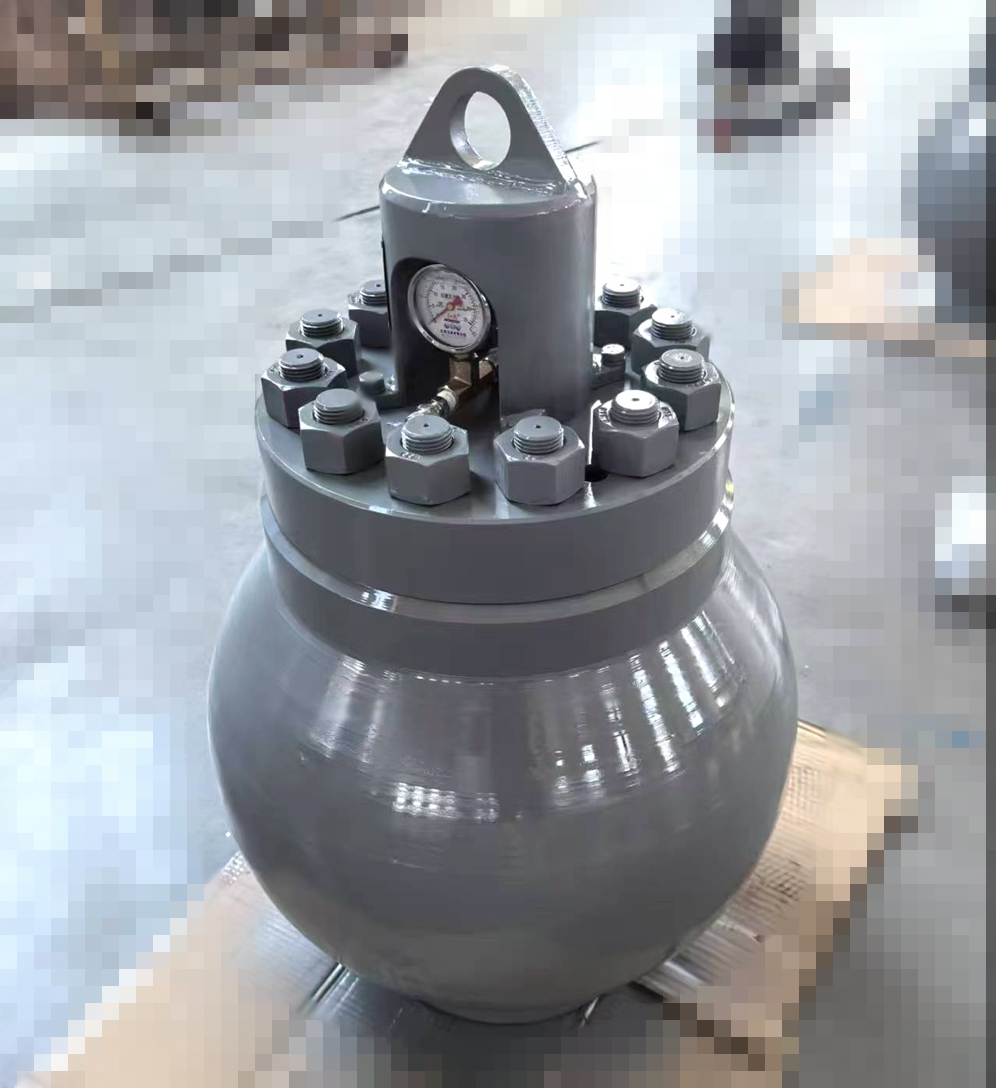

Pulsation Dampener, Diaphragm/Capsule/Bladder & Assembly Parts

Features:

* Forged or Cast Pulsation Dampener
AISI 4140(42CrMo)(Or customized material)
* World Top Class Heat Treatment ensuring best mechanical properties
* Rated for drilling operation Pressure maximum 7500 Psi
* Extremely Long Service Life Exceeding API Standard
* Fully interchangeable with major pump models as:

Bomco KB-45/KB-75
Hydril K-10/K-20
Mattco K-10/K-20
Emsco PD-45/PD-55
LS National & HH 3NB-1000/3NB-1300/3NB-1600
Qingzhou SL.1300A
Russian 600/350
* Interchangeable pulsation dampener, diaphragm/capsule/bladder & assembly parts (including: stabilizer, stabilizer plate &screw, bottom plate & gasket, pressure gauge etc.)

*Available size 45/55/75 litre and 10/20 Gallon volume capacity, with rated power 1500Psi, 3000Psi, 5000Psi, 7500Psi

Suction Manifold & Discharge Manifold Assembly/Discharge Strainer Cross Assembly/JA-3 Shear Relief Valve Assembly

Other Assembly and Parts of Mud Pump ( Liner Spray/Wash System, Lubrication System, Dampener Charging Hose, Frame & Skid, Crane, Charging System, Temperature Holding House etc.)

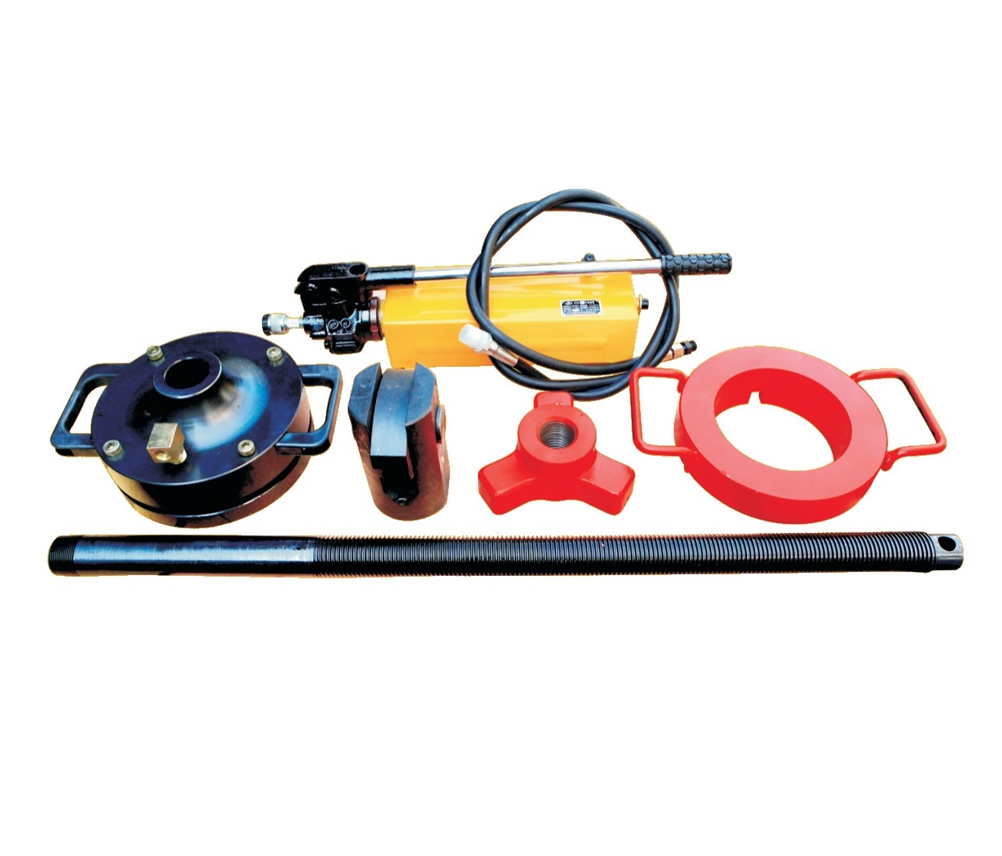

Special Tool

Hydraulic valve seat puller kit

Hydraulic liner puller

Downhole Seal Stacks
