Geological & Water Well Drill Rig

SHYDK-6 Core Drill Rig

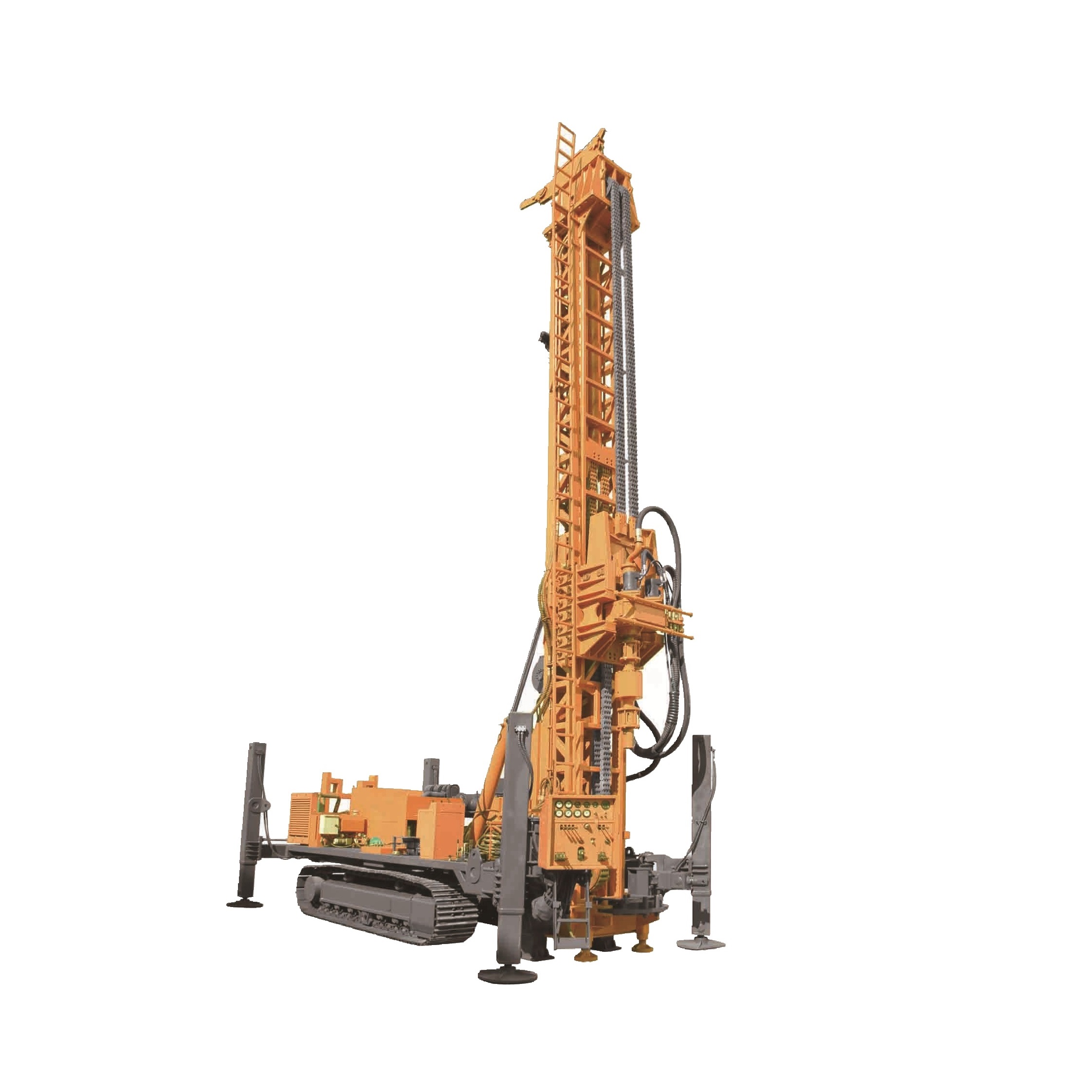

Hydraulic pumps, main valve and hydraulic motor are all from famous international brands; rotating head feeding: speed structure of oil tank lifting; long-range feeding system; rotating head driven by double-motor and adopts enclosed hydraulic system; 2 grades of mechanical shift gears and hydraulic operated stepless shift gears; mast adopting hydraulic lift/down, with touchdown function; can be folded: hydraulic system adopts sensitive load control; track walks, with high-position operation platform and orifice operation platform; with hydraulic support device; with high supporter and low guider devices; orifice with hydraulic holder; optional gauges monitoring system.

Water Well Drill Rig

SXY-1A and SXY-1B rig is increased general shift slide, based on the hydraulic chuck allows fast replacement tool to improve efficiency and reduce labor intensity.

Application:

• The drilling rig is suitable for water well drilling, prospecting, geophysical exploration, roads and buildings and other exploration and blast hole drilling projects.
• It can be chosen according to different alloy drill bit and PDC drill bits and so on.
• It can drill 2-9 grade sandy clay and rock etc.

Main feature:

• It has hydraulic automatic feed mechanism structure, improves drilling efficiency, reduces labor intensity.
• It adapts the ball chunk mechanism instead of the card holder it can implement non-stop down the lever, easy to operate, safe and reliable.
• Winch contains cage, forms a duplex structure supporting the star wheel, it can withstand strong impact.
• Four groups of vertical box bearing retainer to ensure that the rotation has sufficient rigidity to deal with complicated geological conditions gravel layer, gravel layer, etc.
• This machine adopts taper clutch national patent technology, it has transmission torque, easy operation, maintenance of the salient features.

Multi-functional water well drill rig

Our company's water, well drilling rig is a top-drive high-efficiency, multi-functional full hydraulic. Drilling rig, with advanced technology, easy to use, high operating efficiency, Reliable and durable, widely used in drilling water wells, detection wells, dewatering wells, rescue wells, Ground source air conditioning holes, coal bed methane, natural gas, oi l mining and other projects, the rig can be drilled with compressed air downholes in various formations in high temperature areas. high cold areas, and plateau areas, in the range of Platts hardness F=4-20 Drilling holes in, the rock has a high drilling speed. Create a high-end brand in the domestic water well drilling rig industry.

2000 Series rigs key, hydraulic components of all imports of selected brand parts, significantly, reduce the Failure rate and extend the working life of the rig, but also reduce the weight of the machine. And the lifting force can reach 100 tons, the maximum drilling diameter can reach 1000mm. The maximum drilling depth of 2, 000 meters. The installation of a swivel console, more user-Friendly design can be adapted to more complicated construction site.

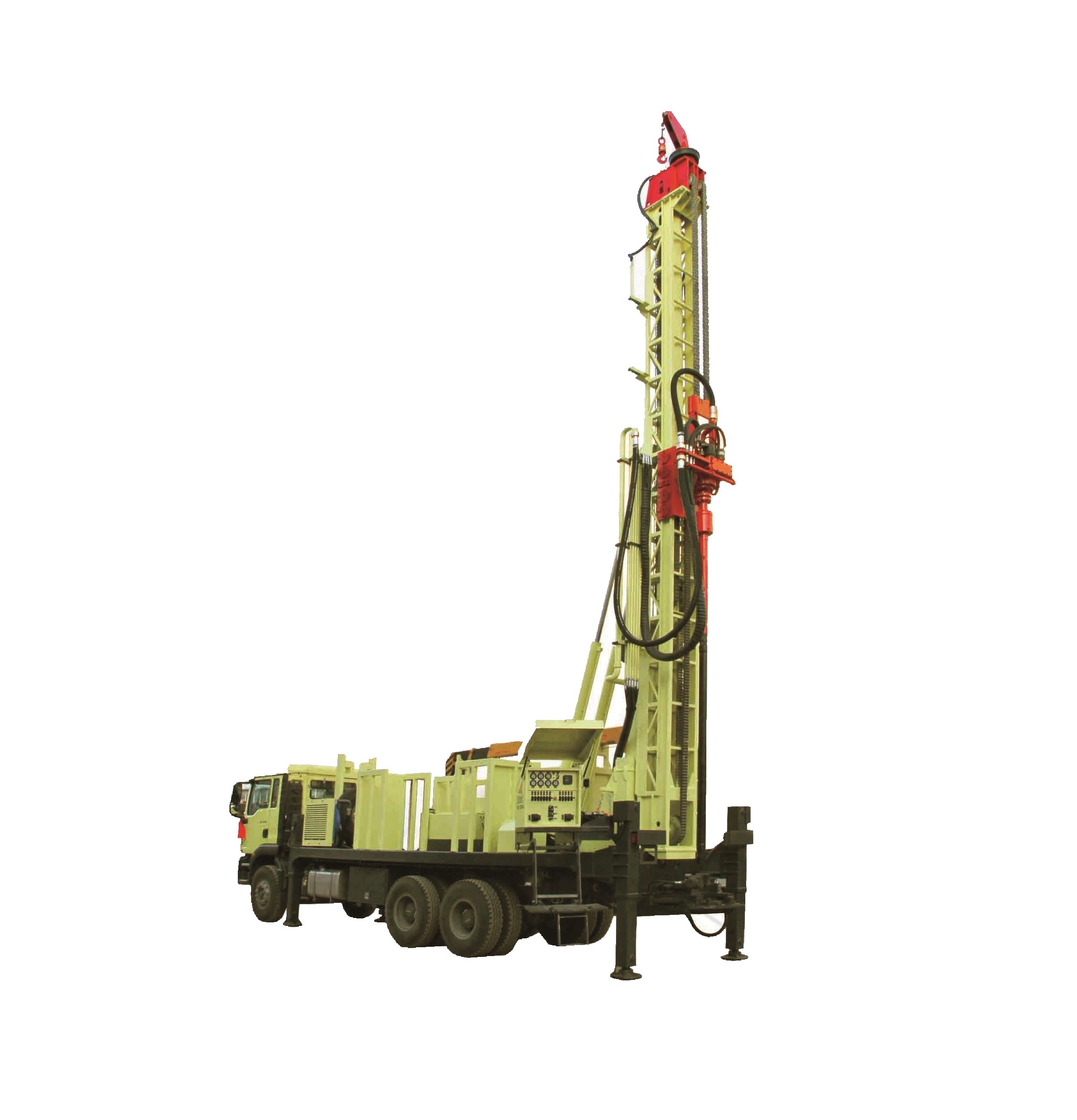

This rig is The mast motions like lifting and adjusting, rods loading/ unloading, rotary, and forwarding, and the jacks and winches al I controlled by the hydraulic system, easy to manipulate and reduced the labor intensity and preparing time, improved the working efficiency and quality. The chassis of the rig could be pedrailzed or truck mounted.
