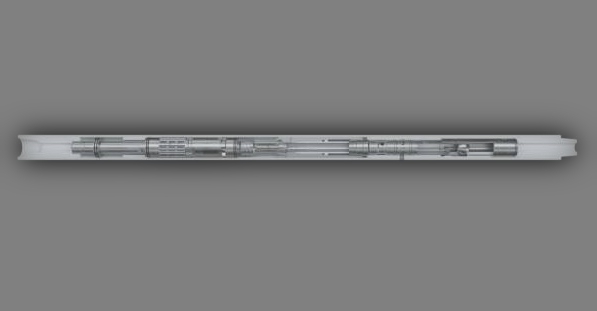

The electrical bypass circulation tool is a remote activated drilling tool using pressure wave control. The tool integrates a variety of micro motors, piston pumps, hydraulic valve sets and temperature and pressure sensors, and uses a high-temperature battery pack to supply power. The pressure sensor detects slight pressure pulse signal changes, identifies, processes and analyzes the pressure signal through an embedded software and hardware system and specific algorithms, and gives control commands to drive the power components, achieving infinite remote activation and deactivation.
| OD | 8" |
| ID | 2-7/8" |
| Tensile Strength | 1500 klbs |
| Torsional Strength | 120 kft.lbs |
| Quantity of Bypass Hole | 3 |
| Size of Bypass Hole | 42mm |
| Temperature Rate | 180℃ |
| Pressure Rate | 15000 psi |
Automatic filling valve is an automatic balance valve. There are two roles. The first is when the coil tubing goes in, automatically balance the internal and outer level of the string and its pressure. Prevent the tubing from being out.
Due to the progress of the production process of rubber tube, the performance of rubber tube is still gradually improving and developing. It can be setting in the casing or in the naked hole, either in a straight well or in a horizontal section, either in the conventional hole or in the key seated hole. […]
The Tool integrates the measurement modules of rotational speed, vibration and pressure to determine whether to release by detecting the rotational speed and vibration signal of the drilling tool, and then sending the pressure pulse signal from the surface to the bottom of the well to activate the tool. It adopts micro-motor rotation to drive the reversing valve set to switch the oil circuit and use the liquid column pressure to perform the releasing.
Introduction This is a downhole internal cutting tool using single/multi-core cable for power supply, which can be used for cutting downhole all types of downhole string with the advantages of accurate cutting point, smoothness and speed through the whole process of monitoring by the upper computer system. The system integrates 3 micro motors, 1 hydraulic […]
Introduction Pump-based technology, multiple switching, sends commands to the slip sleeve by two methods, FSK pressure pulse or input magnetic ball, and the signal is detected by the built-in pressure sensor to control the micro-motor and micro-hydraulic system through the downhole logic terminal to realize the switching action of the slip sleeve. Weight 120kg Length […]
Introduction Water flooding is the most conventional way to supplement formation energy in oil fields, and the effect of water flooding is directly related to the production capacity of oil fields. Under the premise of not changing the original packer structure, automatic control device of layered water flooding is added, and multiple sets of electronic […]
