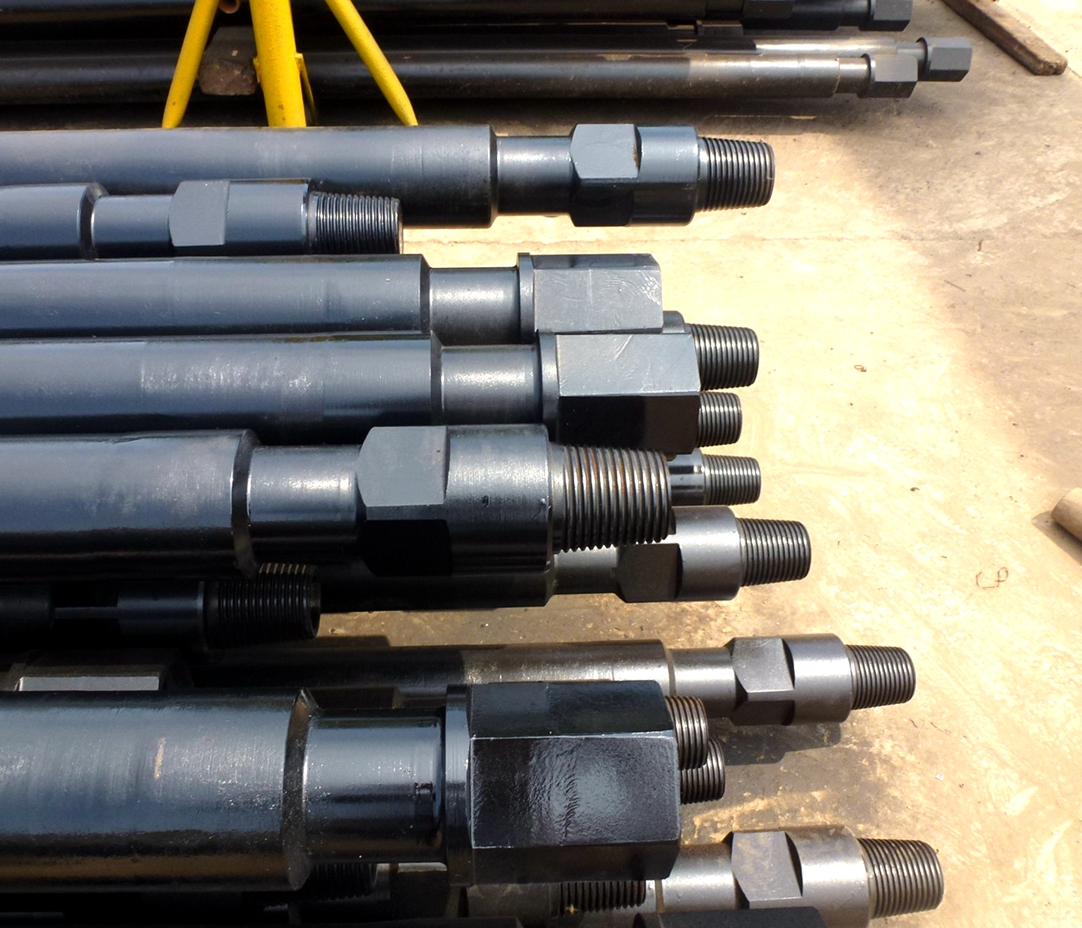

Q rods are the undisputed, worldwide choice for wireline coring drill rods. With 40 years invested into our proprietary Q wireline drill rod, SCOTON has met the market demand through innovative engineering and state-of-the-art manufacturing techniques.
RODS: Q® THREAD PART NUMBERS
BQ, NQ, HQ, V-Wall rod
RODS: RQ® THREAD PART NUMBERS
ARQTK, BRQTK, BRQ, NRQ, HRQ, V-Wall rod
HD THREAD PART NUMBERS
PHD, V-Wall rod
WJ THREAD PART NUMBERS
AWJ and AWJLW, BWJ and BWJLW, NWJ

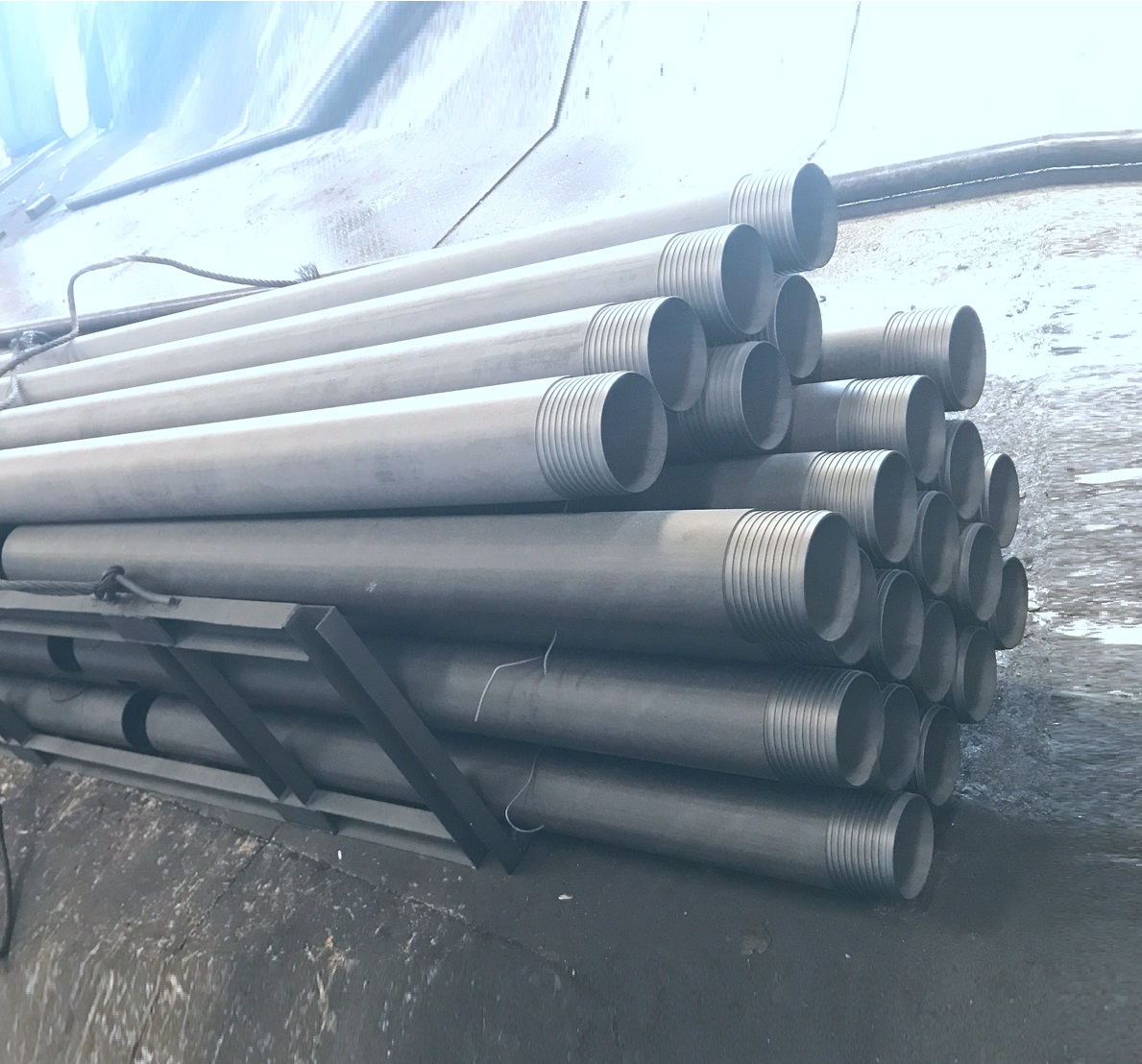

CASING: W THREAD OVERVIEW
This casing is intended for single use or situations where the casing is left in the hole. The W casing is made from DCDMA C80 tubing and utilize the DCDMA W thread form. The W thread is a straight thread (4 threads per inch). This casing is universal in design and can be used in any drilling application where threaded casing is required to be left in the ground.
AW, BW, NW, HW, PW
CASING: WT THREAD OVERVIEW
This casing is engineered to surpass expectations for a casing and features quicker make-up and easier break-out characteristics than the standard W casing. This thread works well under difficult drilling conditions and is designed for repeated application. The WT casing is made with DCDMA C80 tubing and the tapered HD thread provides increased strength and easier make and break-out (2.5 threads per inch).
HWT, PWT
